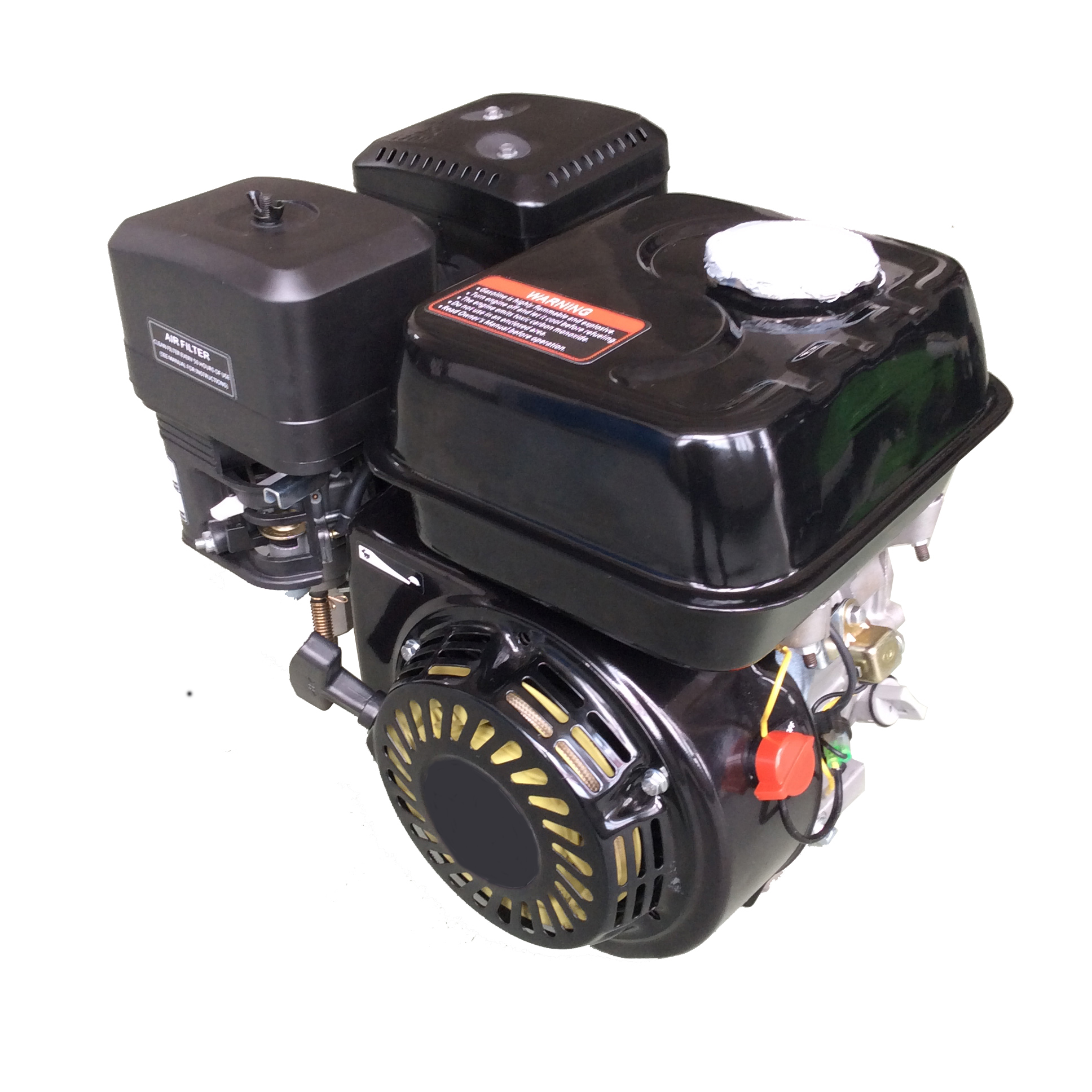

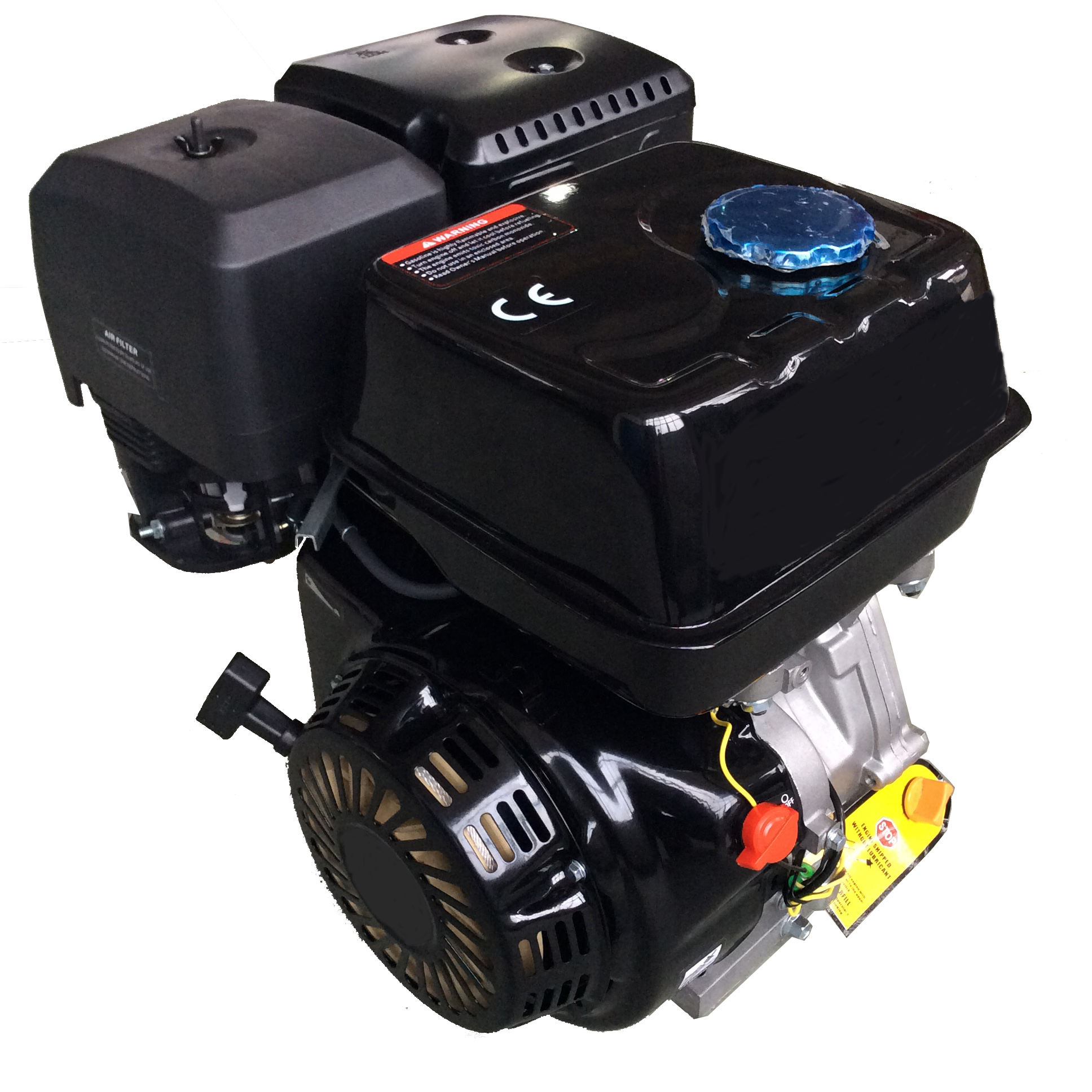

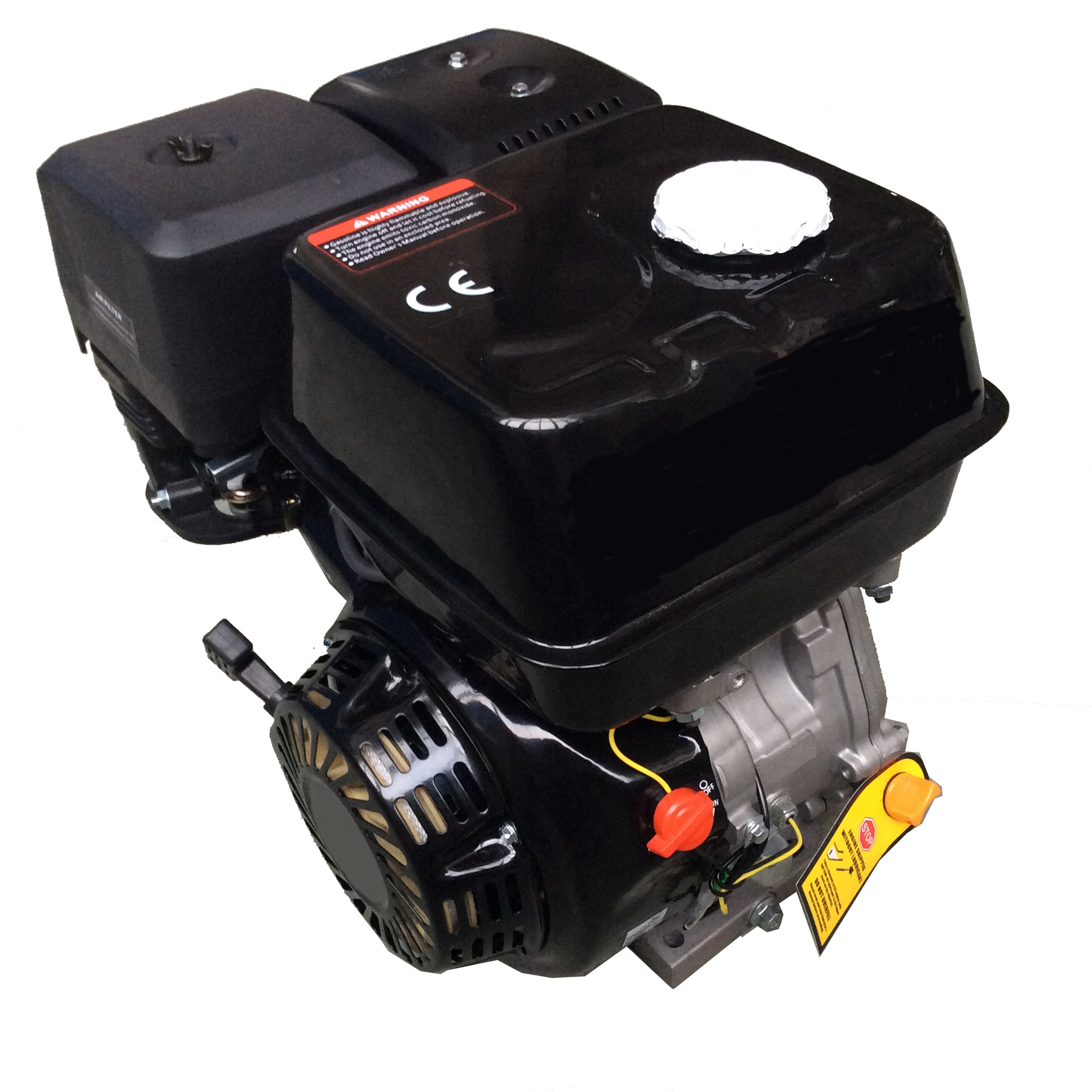

| Gasoline Engine Series | ||||
|---|---|---|---|---|
| Model | 152F | 160F | 168F | 170F |
| Type | Single cylinder, air-cooled, 4-stroke, OHV | Single cylinder, air-cooled, 4-stroke, OHV | Single cylinder, air-cooled, 4-stroke, OHV | Single cylinder, air-cooled, 4-stroke, OHV |
| Bore×Stroke(mm×mm) | 52×40 | 60×40 | 68×45 | 70×45 |
| Displacement(ml) | 84.9 | 113 | 164 | 173 |
| Compression ratio | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 |
| Max. Output(kW/rpm) | 1.5/3600 | 2.2/3600 | 3.0/3600 | 3.3/3600 |
| Rated Output(kW/rpm) | 1.0/3600 | 1.8/3600 | 2.5/3600 | 2.8/3600 |
| Fuel Consumption(g/kW.h) | ≤375 | ≤375 | ≤370 | ≤370 |
| Ignition System | Transistorized magneto ignition | Transistorized magneto ignition | Transistorized magneto ignition | Transistorized magneto ignition |
| Lubrication Type | Splash | Splash | Splash | Splash |
| Fuel Tank Capacity(L) | 1.0 | 2.0 | 3.6 | 3.6 |
| Fuel Type | Gasoline 90# | Gasoline 90# | Gasoline 90# | Gasoline 90# |
| Lubrication oil capacity(L) | 0.35 | 0.45 | 0.60 | 0.60 |
| Starting System | Recoil start | Recoil start | Recoil start/electric start(optional) | Recoil start/electric start(optional) |
| Governor Type | Centrifugal mechanical governor | Centrifugal mechanical governor | Centrifugal mechanical governor | Centrifugal mechanical governor |
| Dimension(L×W×H)(mm) | 335×260×285 | 350×280×300 | 380×325×320 | 380×325×320 |
| Net/Gross weight(Kg) | 7.5/8.5 | 10.0/11.0 | 14.0/15.0 | 15.0/16.0 |
