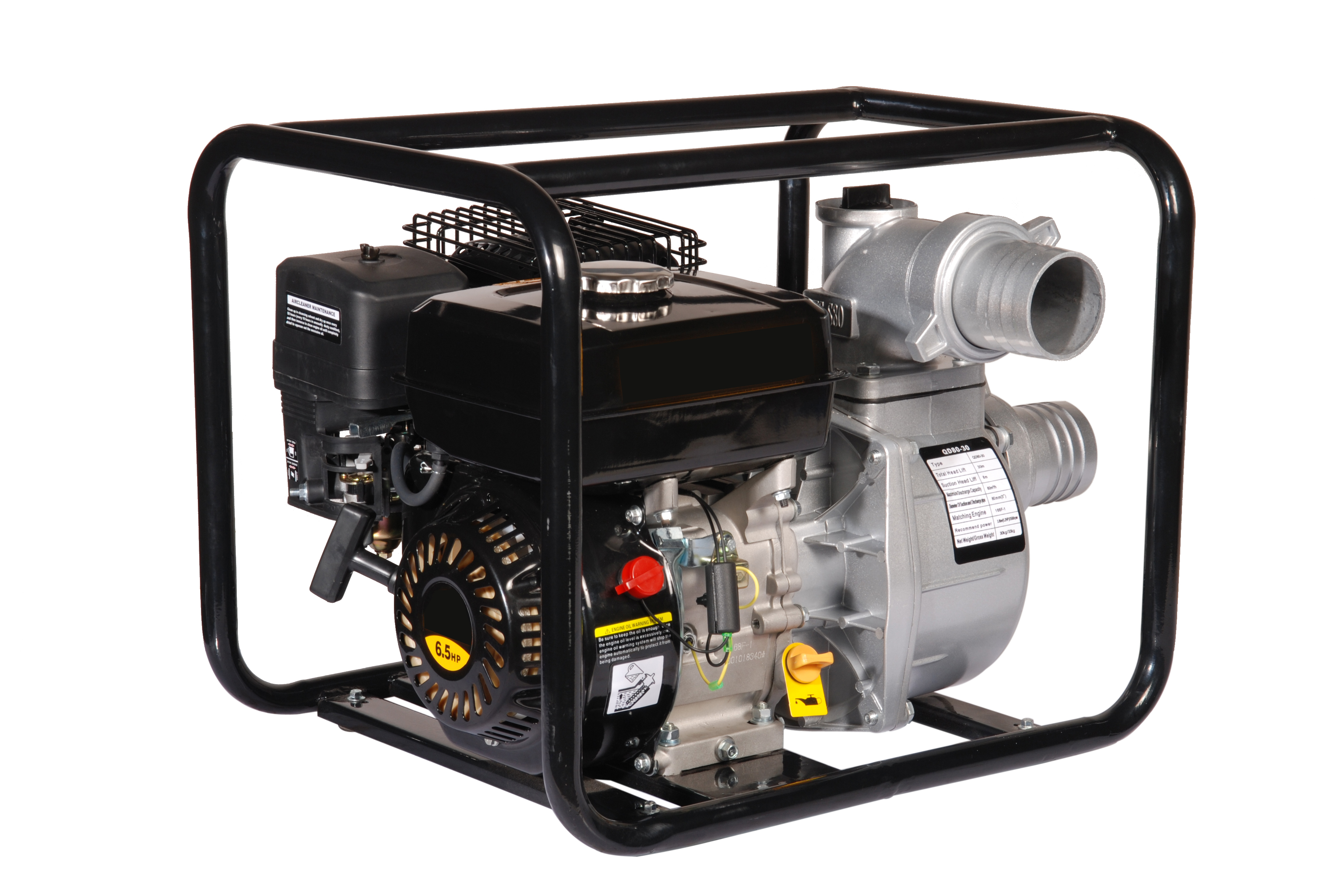

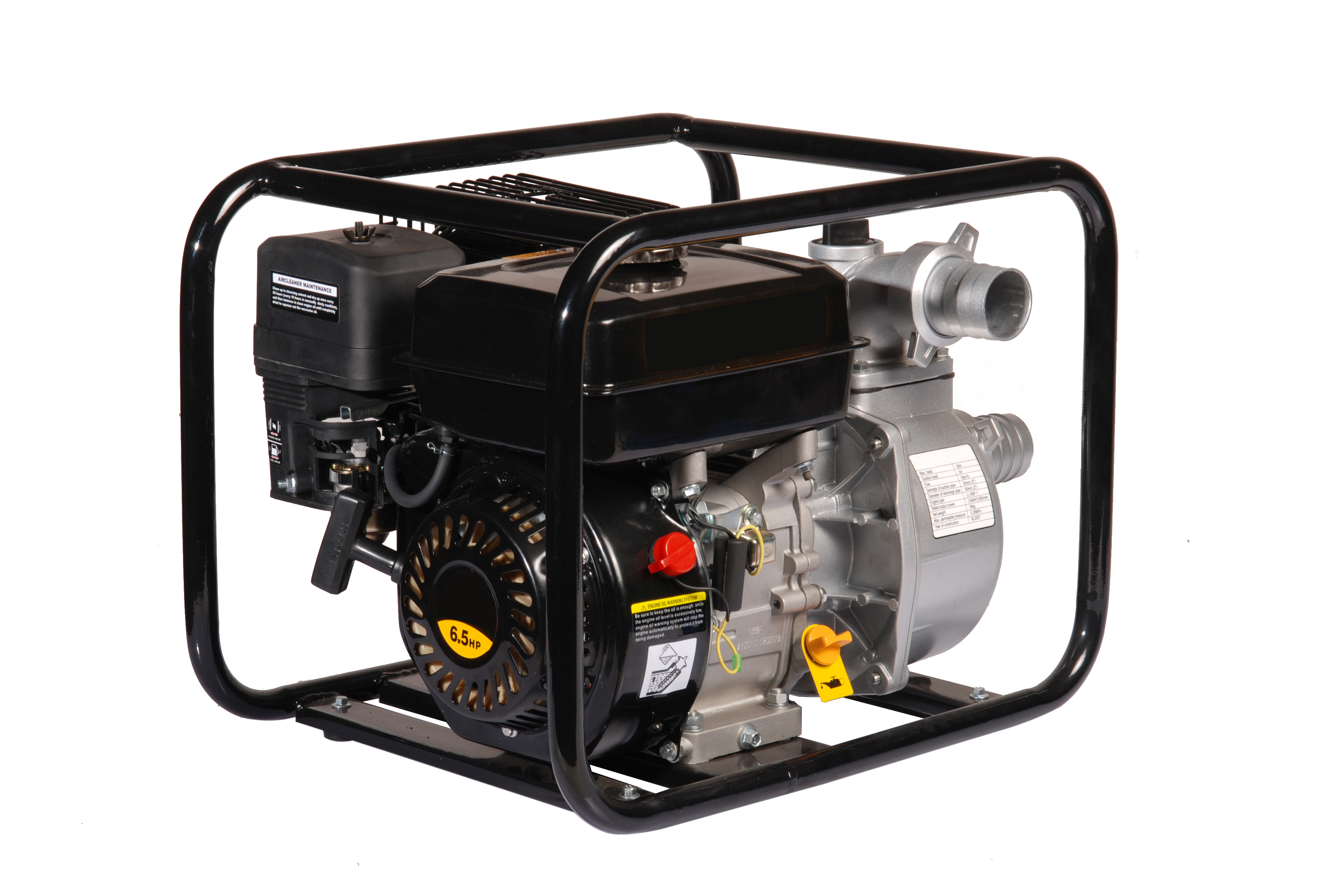

| Gasoline Water Pump Series | ||||
|---|---|---|---|---|
| Model | HHGZ30-20 | HHGZ40-30 | HHGZ50-30 | HHGZ50-100 |
| Inlet Diameter | 30mm | 40mm | 50mm | 50mm |
| Outlet Diameter | 25mm | 32mm | 50mm | 50mm |
| Lift | 25m | 32m | 30m | 125m |
| Suction | 6m | 6m | 6m | 6m |
| Max. Flow | 15m3/h | 25m3/h | 36m3/h | 36m3/h |
| Engine Type | 152F | 160F | 168F | 168F |
| Rated Power | 1.0Kw/3600(r/min) | 1.8Kw/3600(r/min) | 2.5Kw/3600(r/min) | 2.5Kw/3600(r/min) |
| Fuel consumption | ≤375g/Kw.h | ≤375g/Kw.h | ≤370g/Kw.h | ≤370g/Kw.h |
| Lubrication consumption | 6g/kW·h | 6g/kW·h | 6g/kW·h | 6g/kW·h |
| Dimension | 520×450×510 | 520×450×510 | 620×490×610 | 620×490×610 |
| Net/Gross weight | 18/20Kg | 22/24Kg | 28/30Kg | 36/38Kg |
